Déplacement: 40.1
cm
3
/rev. This is the volume of fluid that the pump displaces per revolution of its gears.
Pression nominale: 315 bar. It is the pressure at which the pump is designed to operate continuously under normal conditions.
Pression maximale: 350 bar. This is the maximum pressure that the pump can endure for short periods.
Speed Range: The recommended speed range is 600 – 3000 rpm. Operating within this range helps to ensure the pump's efficiency and reliability.
Flow Rate: At a speed of 1450 rpm, a pressure of 10 bar, and a viscosity of 46
mm
2
/s, the flow rate is approximately 57.6 L/min. The flow rate is directly proportional to the pump's displacement and speed.
Power Requirement: The power required to drive the pump at the rated operating conditions is approximately 11.5 kW. This power consumption is based on the pump's flow rate, pressure, and overall efficiency.

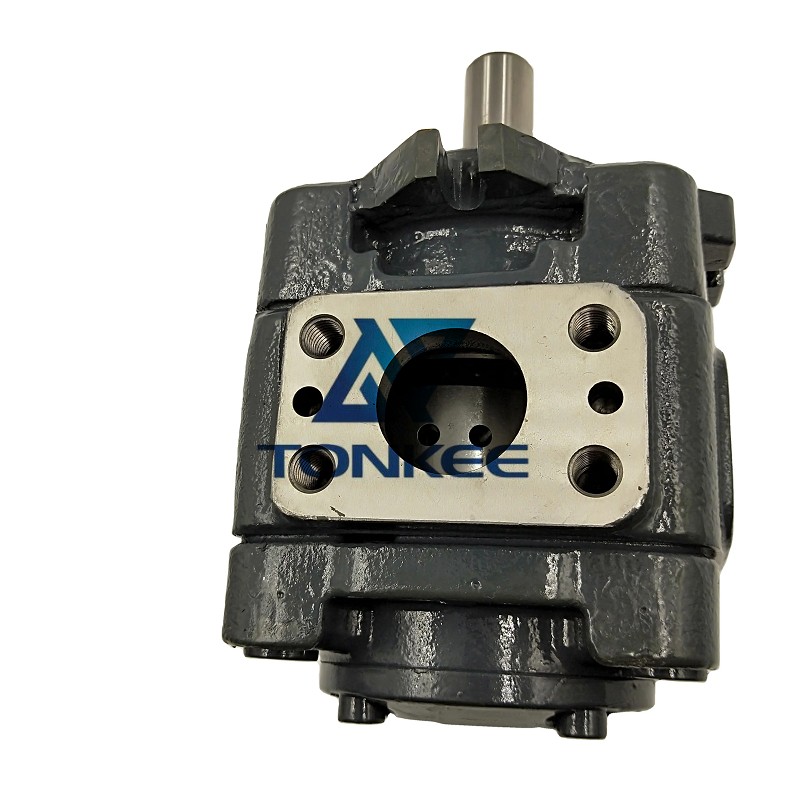

PGH4 – 3X/040RR11VU2 (R901147113)
Déplacement: 40.1
cm
3
/rev, the same as the PGH4 – 3X/040RE11VE4.
Pression nominale: 250 bar. This pump has a lower rated pressure compared to the PGH4 – 3X/040RE11VE4.
Pression maximale: 300 bar. The maximum pressure it can handle for short – term operations is also lower than that of the PGH4 – 3X/040RE11VE4.
Speed Range: 600 – 3000 rpm, which is the same as the other model.
Flow Rate: Under the same conditions of 1450 rpm, 10 bar, and 46
mm
2
/s viscosity, the flow rate is approximately 57.6 L/min, identical to the PGH4 – 3X/040RE11VE4.
Power Requirement: At the rated operating conditions, the power required is around 9.2 kW, which is less than that of the PGH4 – 3X/040RE11VE4 due to the lower pressure rating.
