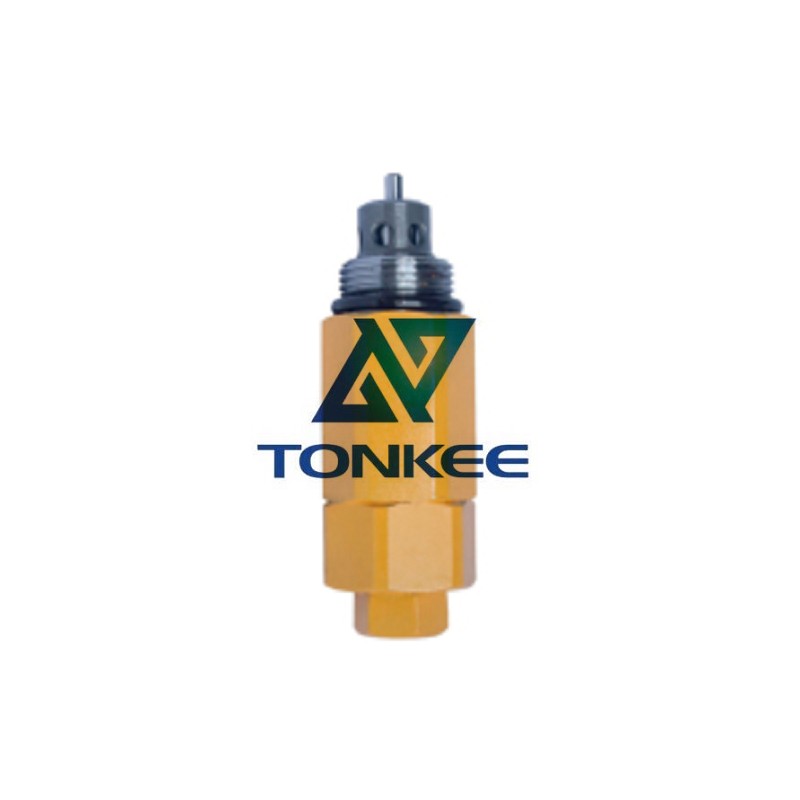

The R200 – 5 Main Relief Valve has a rated flow capacity of approximately 180 L/min (liters per minute). This enables it to manage the normal flow of hydraulic fluid through the system during typical operating conditions for the associated machinery.
The 210 – 5 is designed with a rated flow of around 200 L/min, allowing it to handle a higher volume of fluid flow, which is beneficial for more demanding hydraulic operations.
Maximum Flow
In extreme conditions, the R200 – 5 can accommodate a maximum flow of up to 200 L/min.
The 210 – 5 can handle a maximum flow of up to 220 L/min to meet sudden increases in fluid demand.
Adjustment Range
The R200 – 5 valve offers a pressure adjustment range from 22 MPa to 28 MPA. This allows for fine – tuning the pressure – relief settings according to specific requirements of the hydraulic system, such as different operating pressures for various tasks.
The 210 – 5 has an adjustment range from 24 MPa to 30 MPA, providing flexibility in pressure regulation for different operational scenarios.
