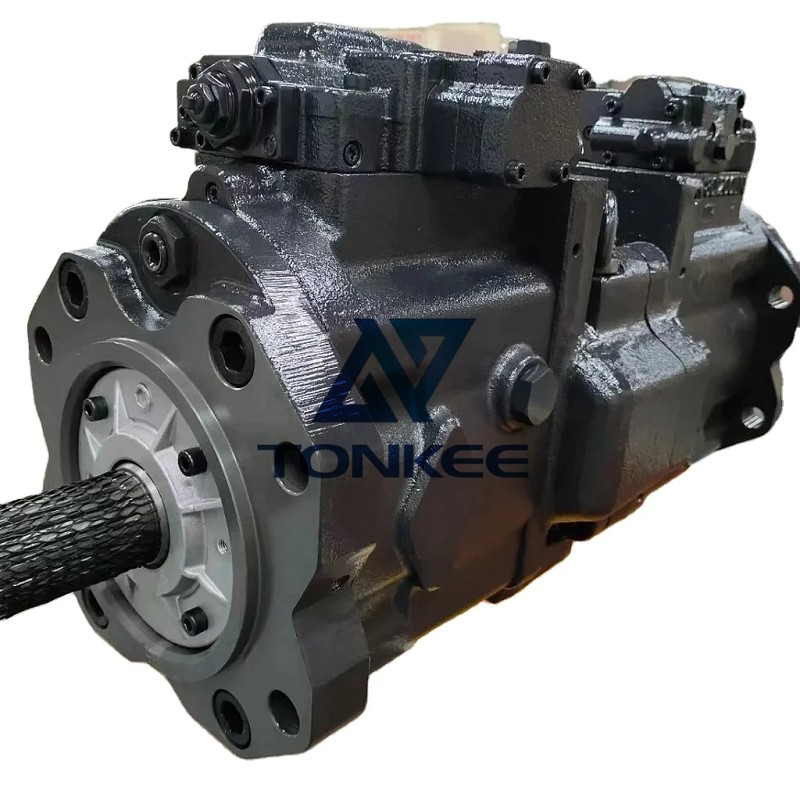

OEM K5V200DTH-9N2Y Main Hydraulic Pump for Volvo EC480D_Excavator Hydraulics, Motore diesel, SKS idraulico

Type4: Variable – displacement axial – piston pump with a swash – plate design, suitable for mobile applications such as excavators.

Displacement6: 200

cm

3



/rev.

Pressure6

Pressione nominale: 34.3 MPA.

Peak Pressure: 39.2 MPA.

Speed5

Max. Self – Priming Speed: 1,850

min

−1



 (2,200

min

−1



 with impeller).

Max. Speed: 2,200

min

−1



.

Structure6: It can be of single, tandem, or parallel type, providing flexibility in different hydraulic system configurations.

Features2: It has high power density, high efficiency, large self – priming capability, long life, low noise, and a wide range of control options, which can meet the high – power and high – precision control requirements of Volvo EC480D excavators.
