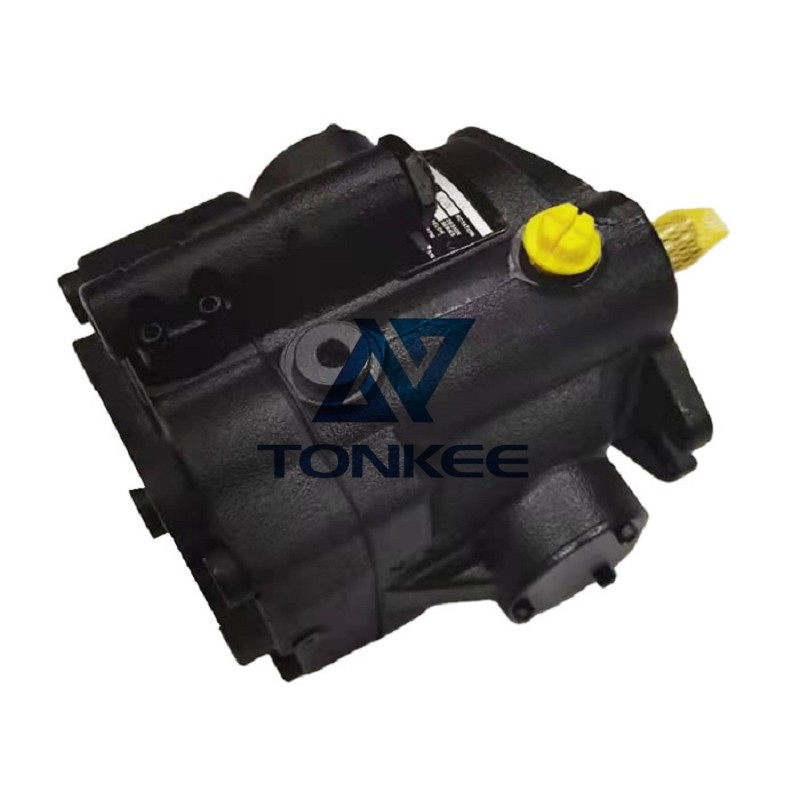

유형: Variable – displacement vane pump. It is designed to provide a reliable source of hydraulic power in a wide range of applications.
Construction: The pump typically has a robust construction with high – quality materials to ensure durability and long – term performance.
Performance
Flow Capacity
The flow rate can vary depending on the model and operating conditions. The displacement range allows for different flow outputs. For example, it might have a displacement range from a few cubic centimeters per revolution (cc/rev) up to several dozen cc/rev, which can translate to flow rates from a few liters per minute (L/min) to over 100 L/min depending on the rotational speed of the pump.
The maximum flow rate is often achieved at a specific rotational speed, usually in the range of 1000 – 1800 revolutions per minute (rpm).
Pressure Ratings
The PV plus series can operate at relatively high pressures. The maximum continuous working pressure can range from 140 – 210 bar (2030 – 3045 psi), with peak pressures in some cases reaching even higher values for short – term operations.
