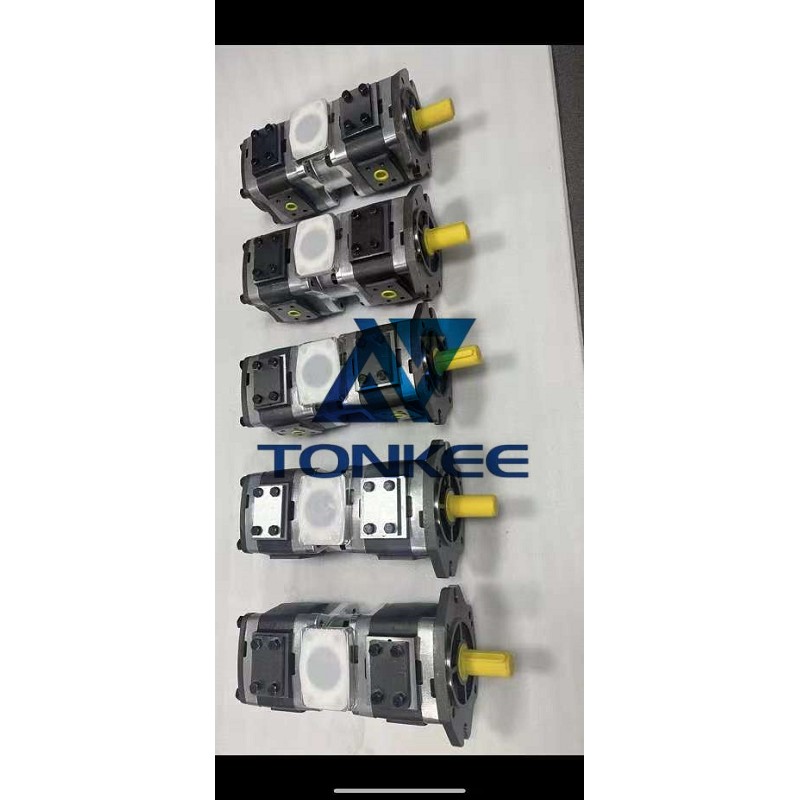

IPVP5 Gear Pump
| Parameter | IPVP Series (5/6/7-32/50/64/80/100/125/160-101) |
|---|---|
| Pump Type | External gear pump (positive displacement) |
| Model Nomenclature | – IPVP: Series identifier – 5/6/7: Frame size – 32/50/64/80/100/125/160: Displacement (cm³/rev) – 101: Standard configuration code (standard design) |
| Displacement Range | 32 cm³/rev to 160 cm³/rev |
| ** Maximum Continuous Pressure** | 200 bar (continuous) 250 bar (peak, short-term) |
| Maximum Speed | 1800 rpm (at maximum pressure) 3000 rpm (at reduced pressure) |
| Direction of Rotation | Clockwise (standard); counterclockwise (optional on request) |
| Inlet/Outlet Ports | – Inlet: G 1″ to G 2″ (BSP) or 1″ to 2″ NPT – Outlet: G 3/4″ to G 1 1/2″ (BSP) or 3/4″ to 1 1/2″ NPT |
| Shaft Type | Straight keyed shaft (ISO 286-2 tolerance) |
| Material | – Casing: Cast iron (GG 25) – Gears: High-strength alloy steel (case-hardened) – Shaft: Alloy steel (42CrMo4) |
| Weight (Approx.) | 8 kg (32 cm³/rev) to 22 kg (160 cm³/rev) |
| Hydraulic Fluid | Mineral oil (ISO VG 32 to VG 100) Synthetic esters (on request) |
| Fluid Temperature Range | -20°C to +100°C (standard) -30°C to +120°C (with special seals) |
