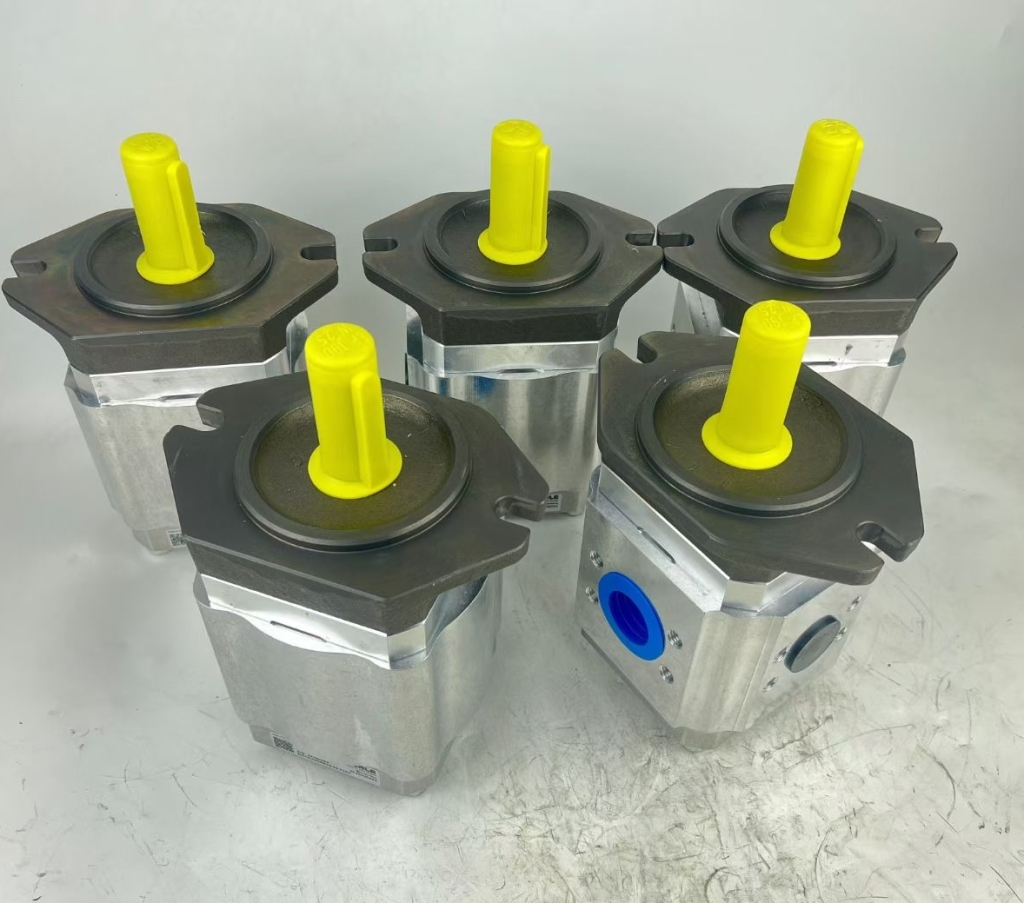

Hot sale EIPC5-080RA23-10 EIPC3-050RA23-10 EIPC3-050RB23-10 Injection Molding Machine Servo Gear Pump

EIPC3-050RB23-10 Injection Molding Machine Servo Gear Pump

• Displacement: 50.3 cm³/rev.
• Flow Rate: 75 L/min (at 1500 rpm).
• Speed Range: Nominal speed 100 - 1800 rpm; maximum speed 1800 rpm.
• Pressure Performance: Continuous operating pressure is 250 bar; peak operating pressure is 280 bar (10-second duration, 15% duty cycle); start-up pressure peak is 300 bar.
• Viscosity and Temperature Adaptability: Operating viscosity ranges from 10 to 300 mm²/s, starting viscosity is 2000 mm²/s; operating temperature ranges from -20°C to +100°C, maximum medium temperature is 120°C, and ambient temperature ranges from -40°C to +80°C.
