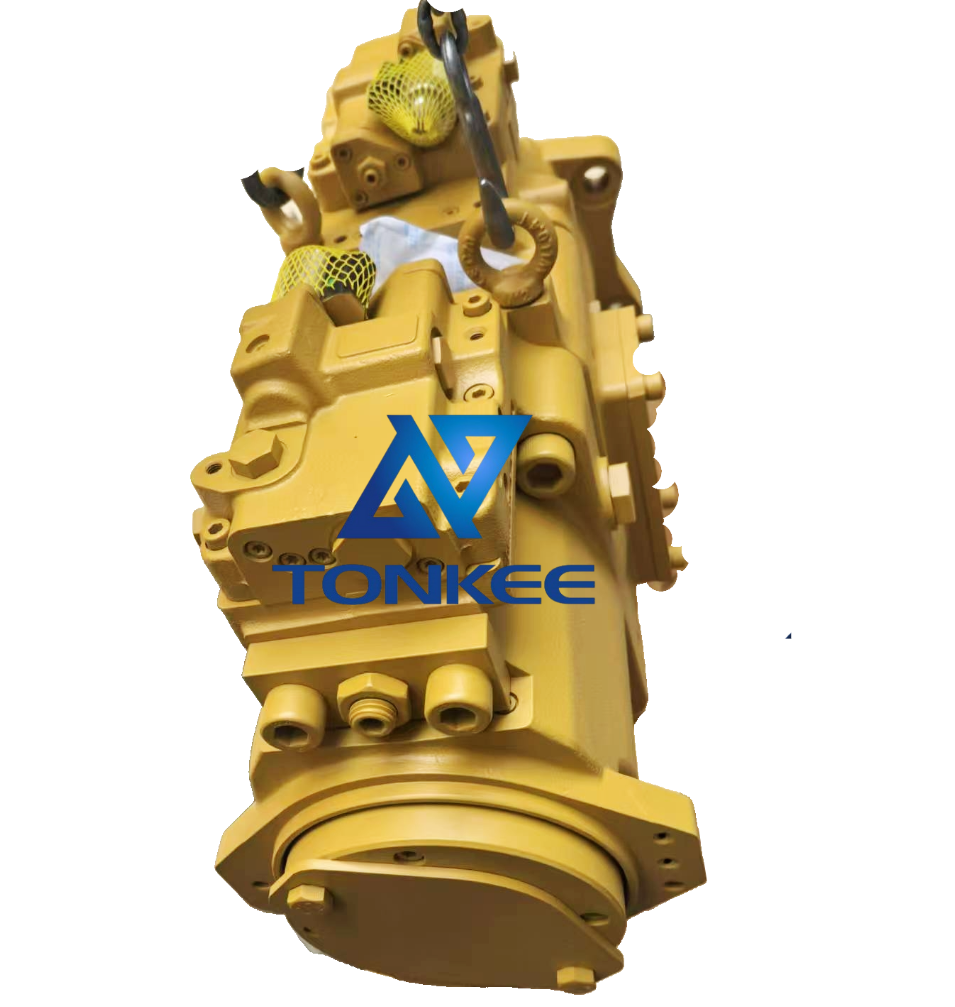

Deslocamento: The maximum displacement is 280 cm³, which can provide a large – flow hydraulic oil output to meet the operating requirements of excavators.
Rated Pressure: The rated pressure is 37 MPa (equivalent to 370 bar), which can ensure stable operation of the pump under high – pressure conditions and provide sufficient power for the excavator’s hydraulic system.
Peak Pressure: The peak pressure can reach 42 MPa (i.e., 420 bar), which enables the pump to withstand short – term high – pressure impacts, such as when the excavator performs heavy – duty operations.
Maximum Self – priming Speed: The maximum self – priming speed is 1800 min⁻¹, which means the pump can quickly suck in hydraulic oil under this speed condition without the need for additional priming devices.
Maximum Speed: The maximum speed is 2100 min⁻¹. Within this speed range, the pump can maintain good performance and efficiency.
Maximum Input Torque: The maximum input torque is 2500 N·m, which requires the power input end to provide sufficient torque to drive the pump to work and also reflects the pump’s ability to withstand torque.
