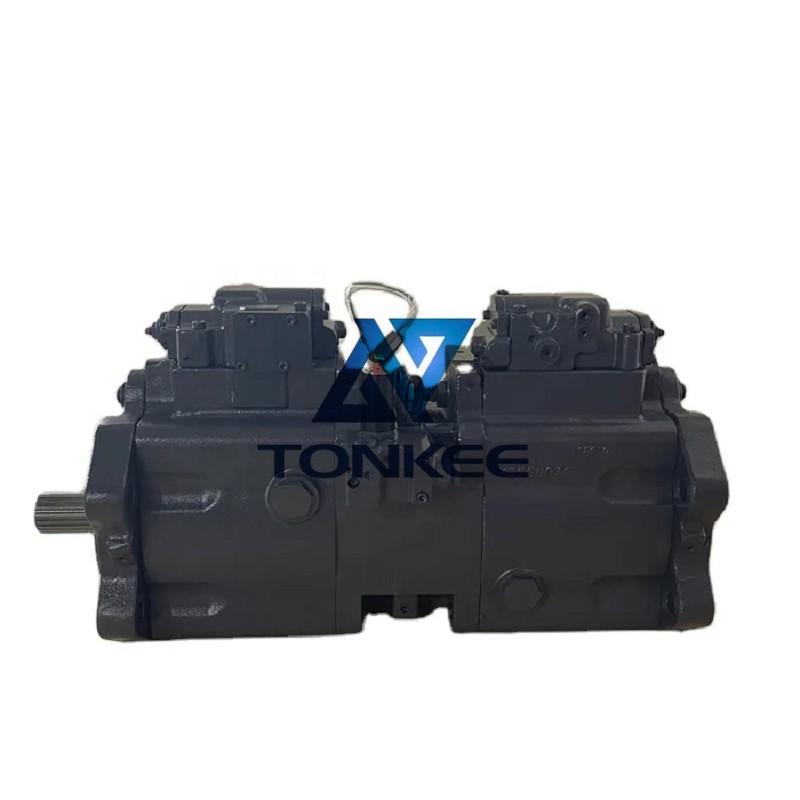

Type: It is a variable – displacement axial – piston pump with a swash – plate design, suitable for mobile applications like excavators.
Displacement: 160
cm
3
/rev.
Pressure
Rated Pressure: 34.3 MPa.
Peak Pressure: 39.2 MPa.
Speed
Max. Self – Priming Speed: 2,000
min
−1
.
Max. Speed with Impeller: 2,350
min
−1
.
Structure: It can be of single, tandem, or parallel type, offering flexibility in different hydraulic system configurations.
Features: This pump has high power density, high efficiency, large self – priming capability, long service life, low noise, and a wide range of control options. It can meet the high – power and high – precision control requirements of relevant engineering machinery.
