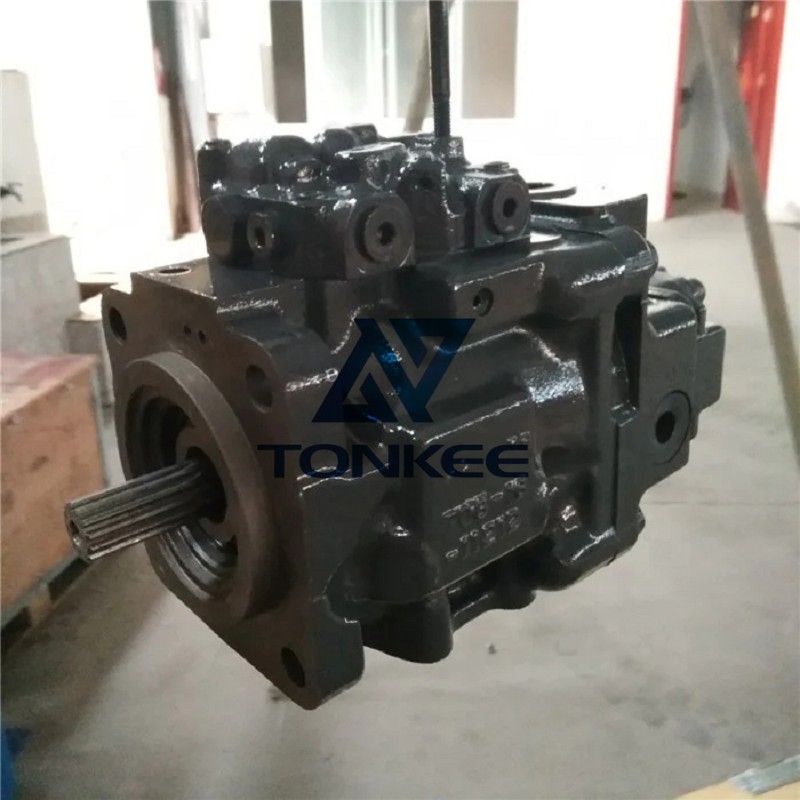

Type: It is a swash – plate type variable – displacement hydraulic piston pump, suitable for open – loop hydraulic systems.
Displacement: The displacement is
36×2
ml/r, which means the pump discharges 72 milliliters of oil per revolution.
Rotation Direction: When viewed from the shaft end, it can be clockwise (right – hand) or counter – clockwise (left – hand).
Speed
Rated Speed: It is 2000 r/min, which is the rotational speed at which the pump operates stably under normal working conditions.
Max Speed: The maximum speed can reach 2300 r/min.
Pressure
Inlet Pressure: The required inlet pressure is between 0.05 and 0.2 MPa.
Rated Pressure: The rated pressure is 28 MPa, which is the pressure at which the pump can continuously operate stably.
