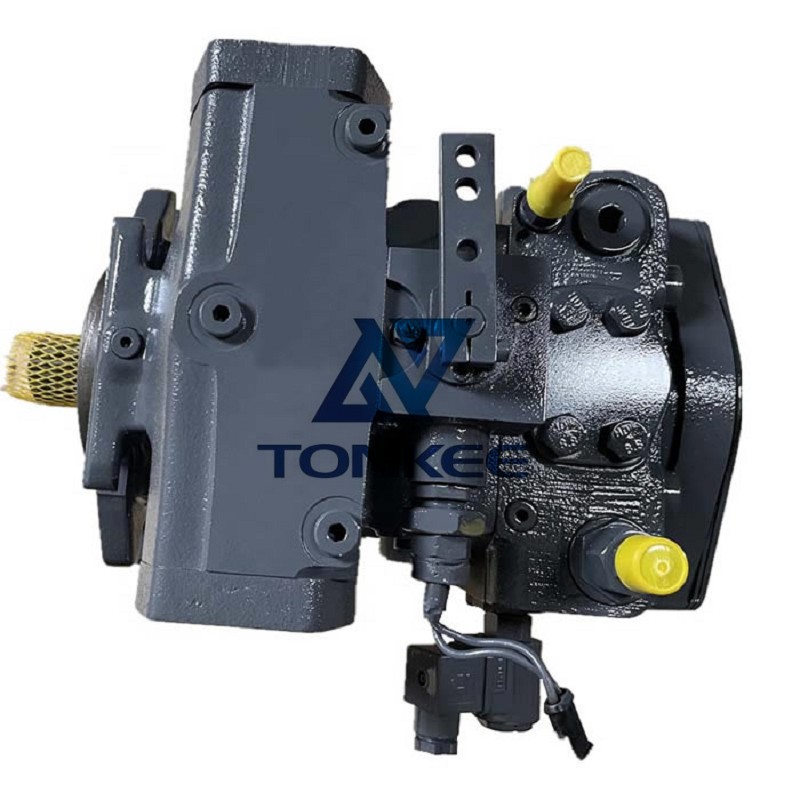

The A4VG series is a well – known product line of hydraulic pumps from Rexroth, a leading manufacturer in the field of hydraulic technology.
Application
These pumps are widely used in a variety of industrial and mobile applications. In industrial settings, they can be found in machine tools, presses, and plastic injection molding machines. In the mobile sector, they are commonly used in construction machinery, agricultural equipment, and material handling vehicles.
Performance Specifications
Displacement
The A4VG series offers a range of displacement options, typically from approximately 25 cm³/rev to 500 cm³/rev. Different displacements allow users to select the pump that best suits the flow requirements of their specific hydraulic system.
Pressure Ratings
Rated Pressure: The rated pressure of A4VG pumps is usually around 350 bar. This is the pressure at which the pump can operate continuously under normal working conditions to deliver the specified flow rate.
Maximum Pressure: These pumps can withstand a maximum pressure of up to 400 bar for short periods. This high – pressure capability enables the pump to handle peak loads and sudden pressure surges in the hydraulic system.
