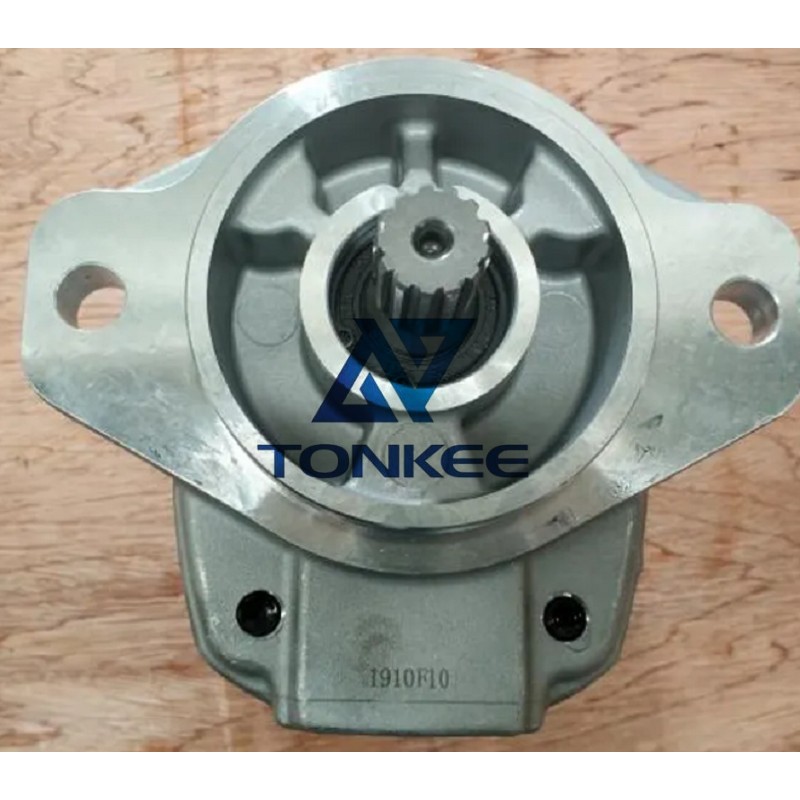

hot sale Crane Hydraulic Gear Pump 705-11-34110 for Komatsu Crane LW160-1 Hydraulic Main Pump 7051134110_Excavator Hydraulics, Motor diesel, SKS hidraulic

Type Gear pump (external gear type, positive displacement).

Displacement ~34 cm³/rev (Typical for LW160-1 series; verified via Komatsu specs).

Presiune nominală 24.5 MPA (3,553 psi)

Peak Pressure 29.4 MPA (4,264 psi)

Rated Speed 1,800–2,200 rpm (matched to the crane’s engine speed).

Rotation Direction Counterclockwise (CCW) when viewed from the drive shaft end (standard for Komatsu).

Ports Inlet: SAE 12 (1.5" NPT); Outlet: SAE 10 (1" NPT)

Fluid Type Recommended: Komatsu AW-68 hydraulic oil (ISO VG 68).

Fluid Temperature Range -15°C to +80°C (5°F to 176°F)

Filtration Requirement ≤10 microns (to ensure oil cleanliness and pump longevity).
