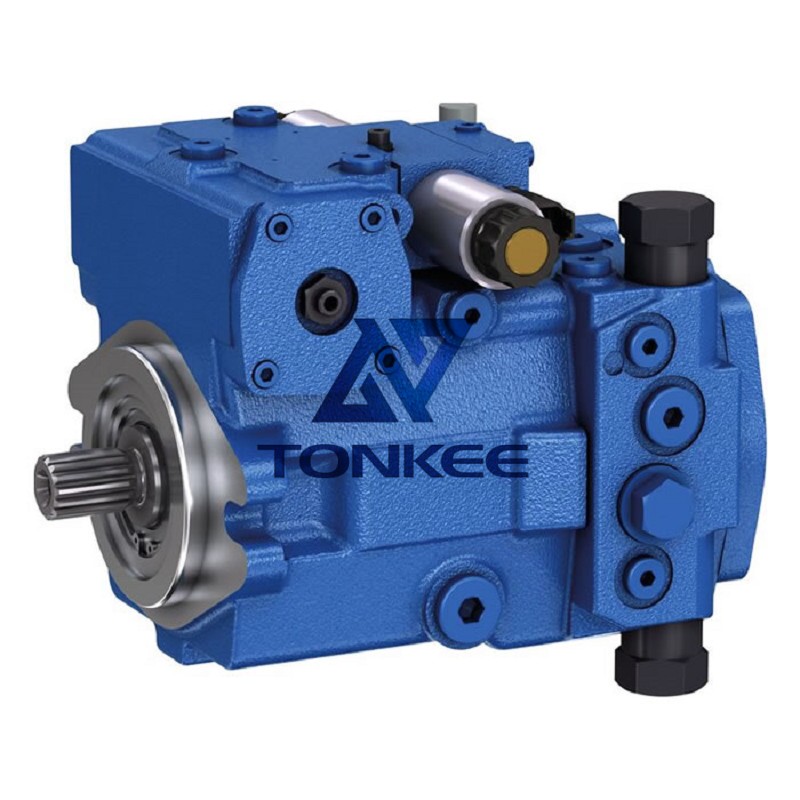

Type: The A10VG Rexroth hydraulic pump is an axial – piston variable – displacement pump. It is designed to operate in a wide range of hydraulic systems, including those in mobile and industrial applications.
Performance Specifications
Displacement
The displacement of the A10VG pump can vary depending on the specific model and its adjustment settings. It typically ranges from a minimum displacement (near 0 cm³/rev for some configurations) to a maximum displacement value that can be, for example, in the range of 45 – 180 cm³/rev (model – dependent). The displacement value is a key factor in determining the flow rate of the pump when combined with the rotational speed.
Pressure
Rated Pressure: The pump usually has a rated pressure in the range of 280 – 350 bar. This is the pressure at which the pump is designed to operate most efficiently and reliably during normal working conditions.
Maximum Pressure: It can handle a maximum pressure of up to 400 bar in short – term or exceptional operating conditions. However, continuous operation at such high pressures may affect the pump's lifespan and performance.
