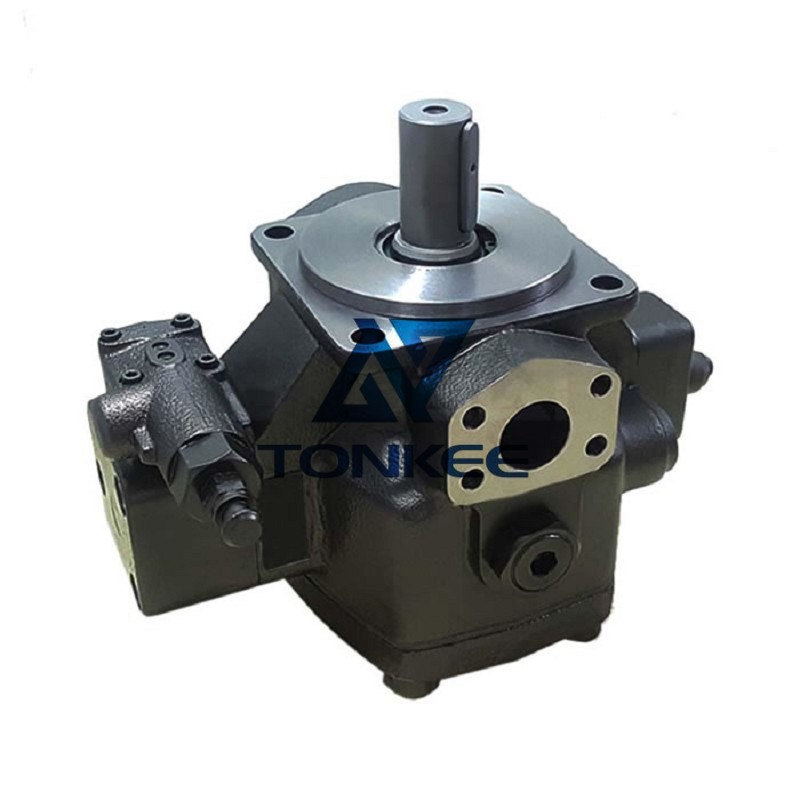

PV7 1x Series: 10 – 14, 10 – 20, 16 – 20, 16 – 30, 25 – 30, 25 – 45, 40 – 45, 40 – 71, 63 – 71, 100 – 118, 100 – 150.
Operating Parameters
Maximum Operating Pressure: Up to 160 bar for pilot-operated models, 100 bar for direct-controlled models.
Maximum Flow: Up to 270 litres/minute.
Performance Features
Low Operating Noise: Reduces impact on the surrounding environment.
Extended Bearing Life Cycle: Thanks to hydro-dynamically lubricated plain bearings.
Pressure and Flow Control: Allows for precise control of pressure and flow.
Low Hysteresis: Ensures accurate and responsive control.
Very Short Control Up and Control Down Times: Enables quick response to system demands.
Dimensions and Compatibility
Mounting Dimensions: According to ISO 3019 – 2.
Connection Dimensions: According to ISO 6162 – 1 and ISO 228 – 1.
ความเข้ากันได้: Suitable for HLP, HETG, HEES and HFD – U hydraulic fluids. Standard series PV7 single pumps can be combined with multiple pumps as well as internal gear, external gear, axial piston and radial piston pumps.
