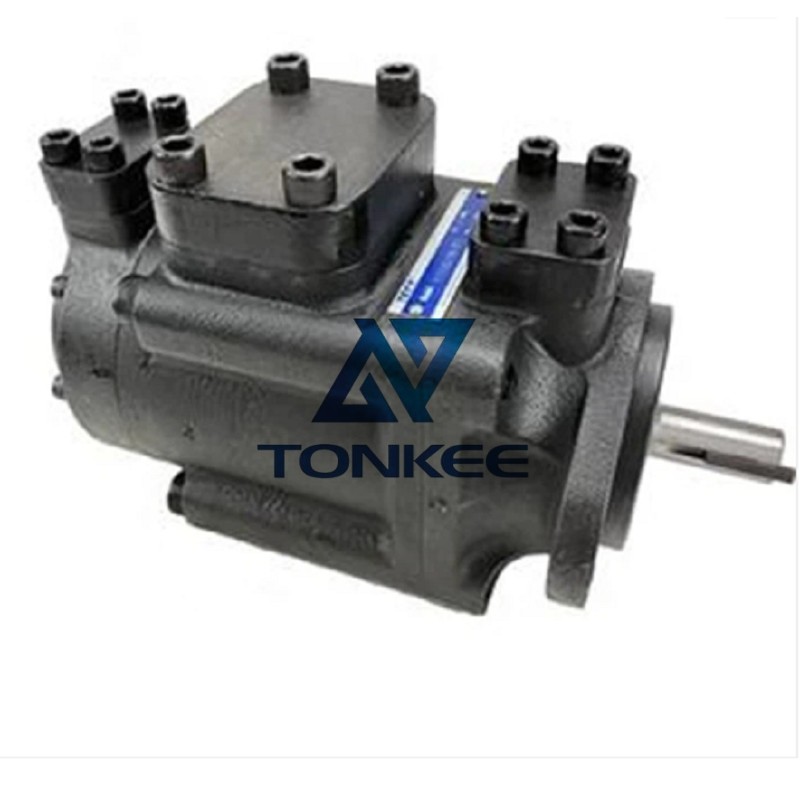

The PFED-5121, PFED-5131, y las bombas de paletas hidráulicas PFED-5141 pertenecen a la misma serie y comparten muchas similitudes en términos de diseño y funcionalidad.
They are designed to operate in hydraulic systems that require medium to high pressure levels and are capable of delivering a constant flow rate. These pumps are commonly used in applications such as machine tools, prensas, máquinas de moldeo por inyección de plástico, y sistemas de automatización industrial.
One of the notable features of these pumps is their vane technology. They utilize a set of vanes that are positioned inside a circular rotor. A medida que el rotor gira, Las paletas se deslizan dentro y fuera de las ranuras del rotor., creando una acción de bombeo. Este diseño permite una transferencia de fluidos suave y eficiente., resulting in high volumetric efficiency and minimal pressure pulsations.
The PFED-5121, PFED-5131, and PFED-5141 pumps are designed for continuous duty operation. They are capable of handling a wide range of hydraulic fluids, incluyendo aceites minerales, aceites sintéticos, and some fire-resistant fluids. These pumps have excellent suction capabilities, allowing them to draw in fluids from tanks or reservoirs effectively.
En términos de rendimiento, these pumps offer different flow rate and pressure options to suit various application requirements.
The PFED-5121 has a maximum flow rate of 40 litros por minuto (LPM) y puede soportar presiones de hasta 210 bar. The PFED-5131 provides a maximum flow rate of 60 LPM y puede manejar presiones de hasta 250 bar. Por último, the PFED-5141 offers a maximum flow rate of 80 LPM y puede manejar presiones de hasta 280 bar. These specifications give users flexibility in selecting the appropriate pump for their specific needs.
Las bombas están diseñadas para una fácil instalación y mantenimiento.. Tienen un diseño compacto y ligero., haciéndolos adecuados para instalaciones con limitaciones de espacio. Además, they feature a cartridge kit design, allowing for quick and convenient replacement of wearing parts, reduciendo el tiempo de inactividad y los costos de mantenimiento.
The PFED-5121, PFED-5131, and PFED-5141 pumps are engineered with high-quality materials and undergo rigorous testing to ensure their reliability and durability. They are built to withstand demanding operating conditions and offer long service life with minimal maintenance requirements.
