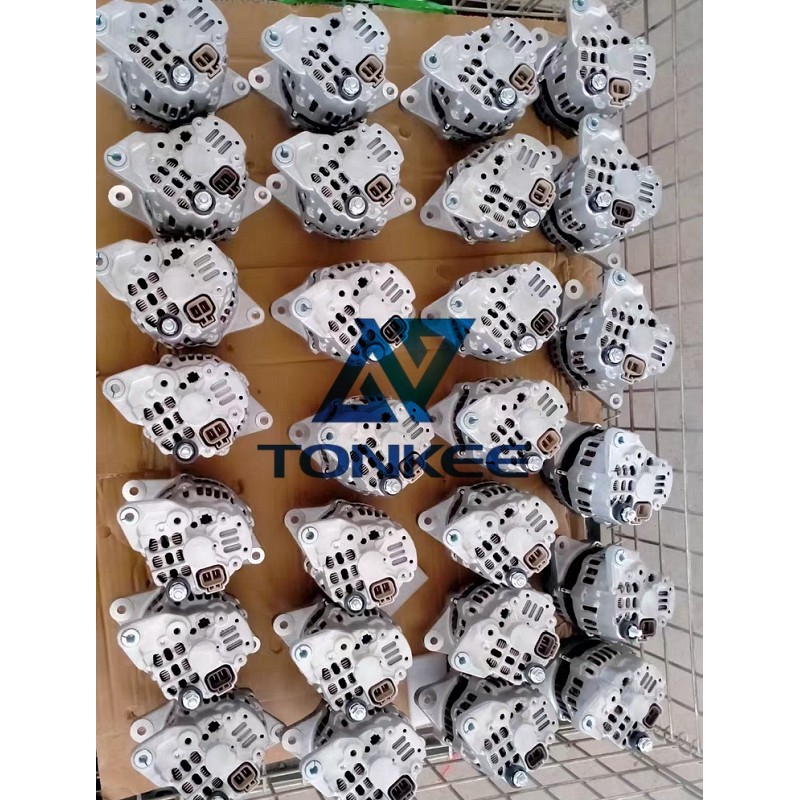

What is the core information of the 2206-2412 (22062412) alternateur?
| Article | Detailed Specification |
|---|---|
| Numéro de pièce | 2206-2412 (also marked as 22062412 for general supply; OEM-compatible with Caterpillar and other machinery standards) |
| Nom du produit | 24V 95A Heavy-Duty Engine Alternator |
| Moteur applicable | Caterpillar C4.2 diesel engine (fits construction, agricultural, and industrial machinery equipped with this engine) |
| Compatible Machinery | Excavatrices (par ex., 312D, 313D), chargeurs (par ex., 914G), générateurs, and other heavy-duty equipment with C4.2 powertrain |
| Core Function | Converts engine mechanical energy into 24V DC electrical energy to charge the on-board battery and power high-demand electrical systems (hydraulic solenoid valves, auxiliary attachments, digital control panels, systèmes d'éclairage) |
| Key Feature | High 95A output to support heavy electrical loads in multi-function machinery |
Quels sont les paramètres techniques clés du 2206-2412 alternateur?
| Paramètre | Spécification |
|---|---|
| Tension nominale | 24À DC |
| Courant nominal | 95UN |
| Maximum Overload Current | 105UN (à court terme, 10-minute duration) |
| Input Rotation Speed Range | 1000–6500 rpm |
| Voltage Regulation Accuracy | ±0,5V (stable output within 23.5V–24.5V range) |
| Structure interne | 3-phase AC generator + full-wave silicon diode rectifier; built-in electronic voltage regulator |
| Norme de montage | SAE J180 flange (direct bolt-on compatibility with C4.2 engine mounting interface) |
| Pulley Type | 4-groove V-pulley (matches C4.2 engine accessory drive belt) |
| Plage de température de fonctionnement | -40°C à +110°C (-40°F à 230°F) |
| Classe d'isolation | Class H (resistant to high-temperature engine bay environments) |
| Indice de protection | IP55 (enhanced dust and water resistance for harsh construction/agricultural sites) |
| Poids sec | Environ. 22 kg (48.5 livres) |
| Compatible Hydraulic Oil/Electrical Standards | Meets Caterpillar TO-4 hydraulic oil compatibility; complies with SAE J1171 heavy-duty electrical component standards |
