Basic Information

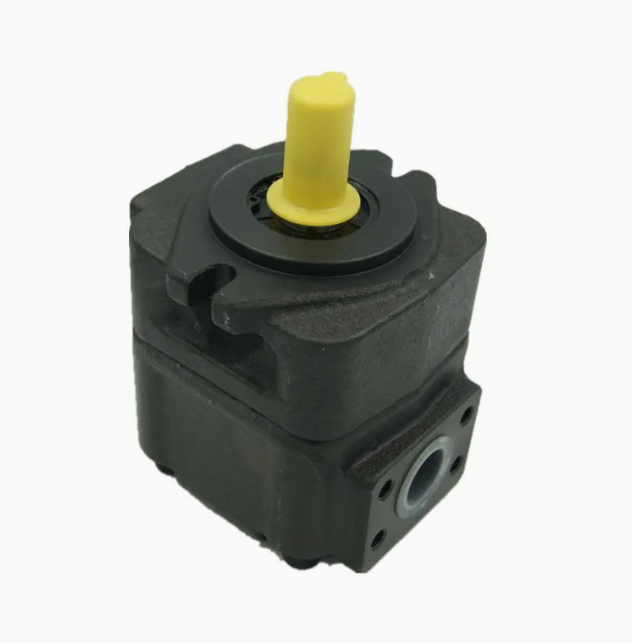

- Series: DVQ High‑Pressure Fixed Displacement Vane Pump (Yuken Type)
- Featured Models:
DVQ20‑17‑F‑RAB‑02
DVQ20‑17‑F‑RAA‑01
DVQ20‑19‑F‑RAA‑01
DVQ20‑23‑F‑RAA‑01
DVQ20‑26‑F‑RAA‑01
- Displacement: 17 / 19 / 23 / 26 cc/rev
- Rotation: R‑Right‑hand (Clockwise)
- Mounting: F‑Foot‑mounted
- Pressure Rating: Rated 21MPa, Max 28MPa
- Features: High‑pressure resistant, low noise, stable flow, high volumetric efficiency, robust structure, interchangeable with Yuken original DVQ series
- Application: Injection molding machine, hydraulic press, machine tool, construction machinery, hydraulic station, industrial automation equipment
English FAQ
Q1: Model code explanation
- DVQ20: Series & frame size
- 17/19/23/26: Pump displacement
- F: Foot‑mount installation
- R: Right‑hand (clockwise) rotation
- RAA‑01 / RAB‑02: Port direction, seal type and version code
Q2: Core advantages
Standard Yuken‑style high‑pressure vane pump, stable performance, long service life, easy maintenance, cost‑effective replacement solution.
Q3: Compatibility
Fully match original Yuken DVQ20 series mounting size, port and performance parameters, direct replacement without modification.
