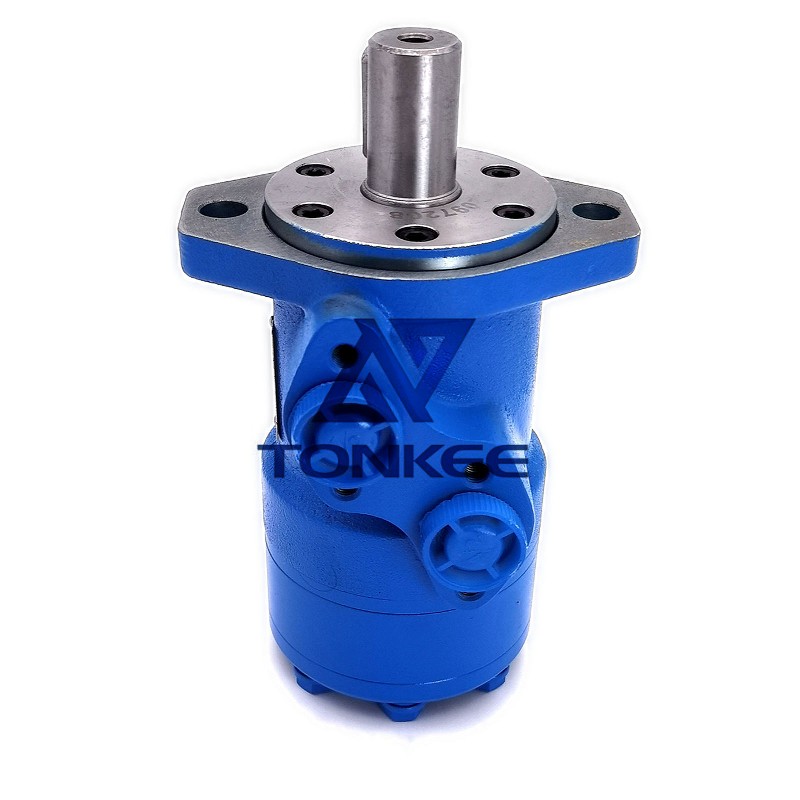

OEM Integral High Speed High Torque Mixer Accessories Omp80 BMP-80 Cycloidal Hydraulic Motor

Continuous Pressure: 14 MPa

Intermittent Pressure: 17.5 MPa

Peak Pressure: 22–22.5 MPa

Allowable Back Pressure: ≤10 MPa (High-pressure seal)

Continuous Torque: 124 N·m

Intermittent Torque: 145 N·m

Continuous Speed: 10–770 rpm

Recommended Flow: 58 L/min (Continuous)

Max Flow: 60 L/min (Continuous) / 75 L/min (Intermittent)

Mounting Flange: 2-hole / 4-hole diamond flange, standard 82.5 mm

Output Shaft: φ25 mm with 8 mm flat key; spline shaft optional

Main Port: G1/2

Drain Port: G1/4

Weight: Approx. 5.7–9 kg

Integrated design with combined stator and rotor, featuring high flow distribution accuracy and superior mechanical efficiency.

High-pressure seal with imported shaft seal, withstands back pressure up to 10 MPa, oil leakage proof, applicable for series and parallel connection.

Reinforced double needle roller bearings, excellent radial load resistance and stable operation at high speed.

Robust housing made of cast iron / alloy, impact and fatigue resistant, ideal for continuous heavy-duty operation.

Stable performance at low speed, high starting torque and even rotation, well adaptable to fluctuating loads of mixers.

✅ Mixer (Main Application): High speed and high torque drive for uniform mixing and high working efficiency.

✅ Sanitation Vehicles: Drive for sweeping brushes and hose reels.

✅ Construction Machinery: Swing system of mini excavators, auxiliary drive for loaders.

✅ General Equipment: Conveyors, winches and auxiliary units of injection molding machines.
