Basic Information

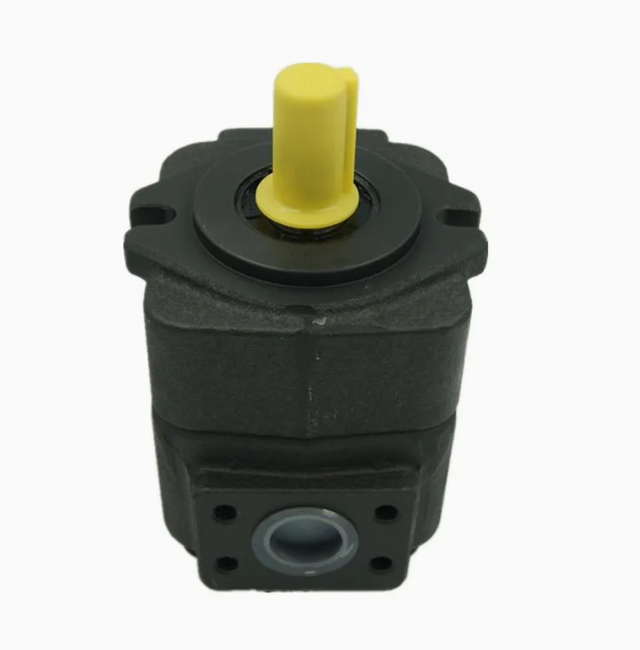

- Series: M4C / M4SC / M4D High‑Performance Fixed‑Displacement Vane Pump (Denison‑type)
- Featured Model: M4C‑024‑1N00‑A102
- Displacement: 024 = 24cc/rev
- Pressure Rating: Rated 21–28MPa, Max 31.5MPa
- Features: High‑pressure heavy‑duty design, high volumetric efficiency, low noise, strong anti‑wear & anti‑pollution performance, stable output, interchangeable with original Denison M4 series pumps
- Application: Construction machinery, injection molding machine, hydraulic press, mining equipment, heavy‑duty industrial hydraulic power units
English FAQ
Q1: Model code explanation
- M4C/M4SC/M4D: Denison high‑pressure vane pump series
- 024: Pump displacement size
- 1N00: Rotation direction, port type & control configuration
- A102: Seal standard, mounting & assembly specification
Q2: Core advantages
Heavy‑duty high‑pressure performance, durable structure for harsh working conditions, perfect replacement for genuine Denison M4 pumps.
Q3: Compatibility
Standard SAE mounting dimensions, direct interchangeable without modification.
