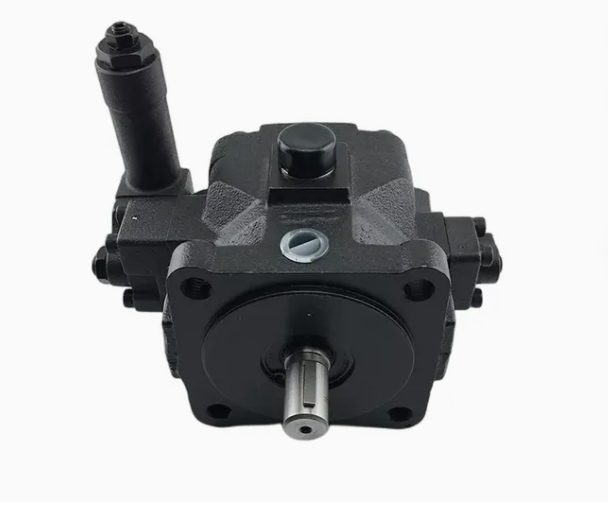

shop PVF Series Hydraulic Variable Displacement Vane Pump PVF‑30‑55‑11S PVF‑20‑70‑15 PVF‑12‑35‑10S PVF‑30‑55‑10S

Basic Information

• Series: PVF Pressure‑Compensated Variable Displacement Vane Pump (Anson‑type, Taiwan standard)
• Main Models:

  PVF‑30‑55‑11S, PVF‑20‑70‑15, PVF‑12‑35‑10S, PVF‑30‑55‑10S

• Frame Sizes: 12 / 20 / 30
• Adjustable Pressure: 35‑70 kg/cm²
• Features: Built‑in pressure compensation, low noise, stable flow, energy‑saving variable design, compact structure, interchangeable with original Anson PVF pumps
• Application: Injection molding machines, hydraulic presses, machine tools, small hydraulic power units, automation equipment, light‑duty industrial hydraulic systems

English FAQ

Q1: Model code explanation

• PVF: Variable vane pump series
• 12/20/30: Pump size (displacement group)
• 35/55/70: Max working pressure (kg/cm²)
• 10S/11S/15: Control mode, rotation, seal and mounting standard

Q2: Core advantages

Q3: Compatibility
