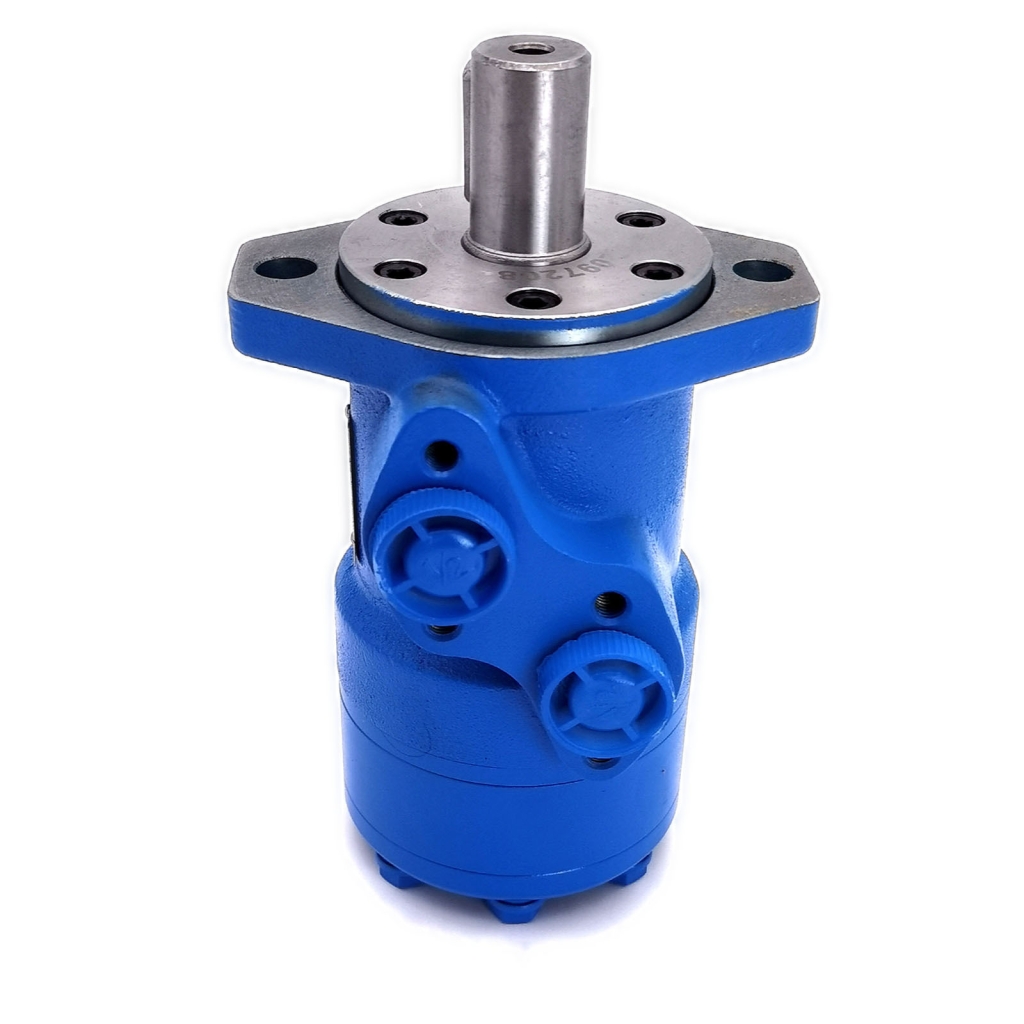

Factory Direct Sales OMT 6000 series Disc Valve Orbit Hydraulic Motor for augers

Verschiebung 125 cm³/rev to 1,600 cm³/rev Maximum Operating Pressure 250 Bar (3,626 Psi) - continuous; 315 Bar (4,568 Psi) - peak Maximum Speed 150 Drehzahl (continuous); 200 Drehzahl (intermittent) Maximum Torque 1,800 N·m to 22,000 N·m (depending on displacement) Volumetric Efficiency ≥92% at rated pressure Mechanical Efficiency ≥90% at rated pressure Direction Control Bi-rotational (reversible via port reversal) Fluid Compatibility Mineral oil, water-glycol (with compatible seals) Fluid Viscosity 10–400 cSt (optimal: 32–68 cSt) Operating Temperature -20°C to 80°C (-4°F to 176°F)
