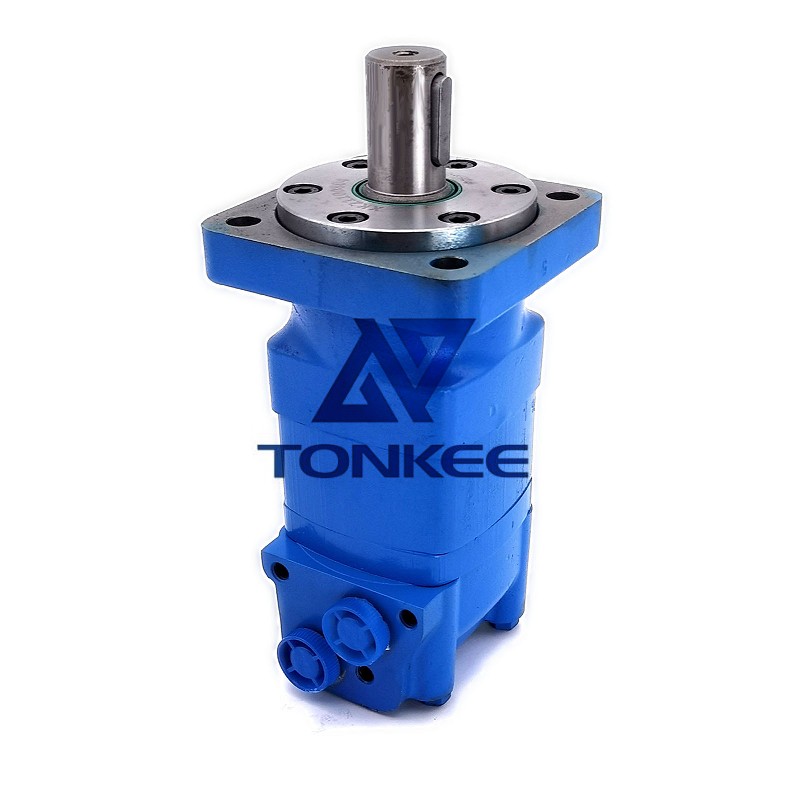

OMR Hydraulic Motors
| Verschiebung (Vg) | 25 cc/rev ~ 250 cc/rev (common models: OMR 25, 50, 80, 100, 160, 200) |
| Maximum Operating Pressure | – Working Pressure (Continuous): 160 bar ~ 210 Bar – Spitzendruck (Intermittent): 200 bar ~ 250 Bar |
| Maximum Flow Rate | 10 L/min ~ 120 L/min (varies by displacement: larger displacement = lower max flow) |
| Speed Range | – Continuous Speed: 50 rpm ~ 3,000 Drehzahl – Peak Speed (Intermittent): Up to 3,500 Drehzahl |
| Output Torque | – Continuous Torque: 30 N·m ~ 300 N·m (calculated at continuous pressure; higher displacement = higher torque) – Peak Torque: 40 N·m ~ 380 N·m |
