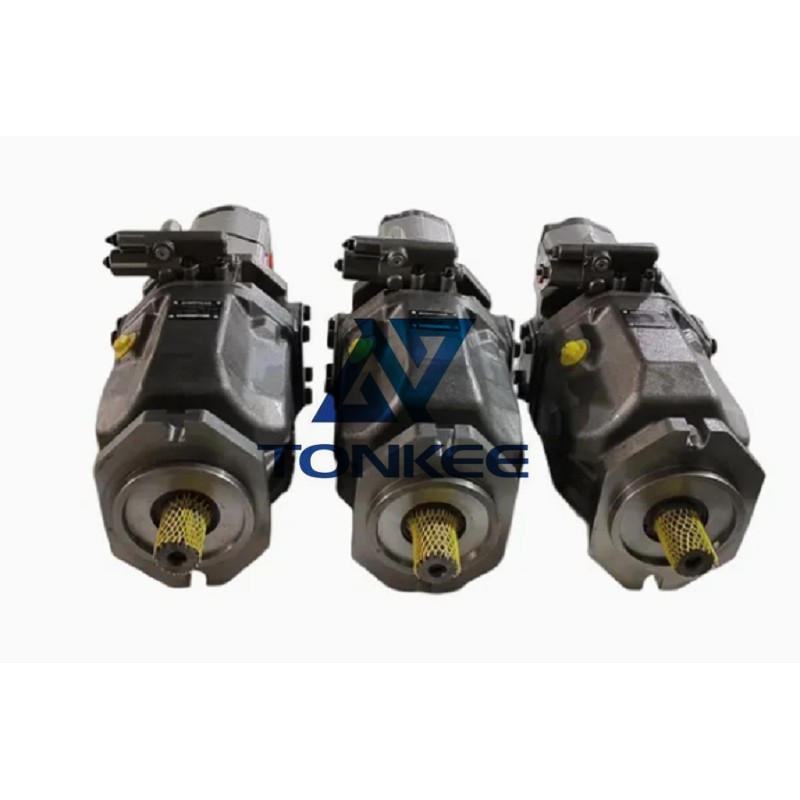

Axial Piston Variable Pump Hydraulic Pump Al-A10vo100dfr1/31r-Vsc62K68

 1.What are the core technical parameters of this pump?

• Nominal Displacement: 100 cm³/rev
• Maximum Working Pressure: 350 bar (5075 psi)
• Rated Working Pressure: 315 bar (4568 psi)
• Maximum Speed: 2800 rpm
• Rated Speed: 1500 – 2500 rpm
• Minimum Speed: 500 rpm
• Oil Viscosity Range: 10 – 400 mm²/s
• Recommended Oil Temperature: -20°C to +90°C (-4°F to 194°F)
• Oil Filtration Requirement: ≥ 10 μm (ISO 4406 Class 16/13)
• Shaft Type: Tapered keyed shaft (ISO 286-2, diameter: 38 mm / 1.496 in)
• Mounting Standard: SAE J744 (3-bolt flange, SAE B)
• Inlet/Outlet Port Size: Inlet: G1 1/2″ (BSPP), Outlet: G1 1/4″ (BSPP)
• Dry Weight: Approx. 65 kg (143.3 lbs)

2. What are the key performance advantages of this pump?

• Precise Dual Control: Hydraulic pilot pressure-flow compensation (DFR1) enables stepless flow adjustment (0-100%) based on system load, reducing energy waste and improving operational efficiency.
• High Pressure Resistance: Robust cylinder block and piston design (alloy steel material) ensures stable performance at 350 bar max pressure, with volumetric efficiency ≥ 95% and mechanical efficiency ≥ 92%.
• Reliable Protection: Integrated pressure relief valve (VSC62) prevents overpressure damage, adjustable within 100-350 bar; anti-cavitation and anti-shock design enhances durability in harsh working conditions.
• Low Vibration & Noise: Optimized swashplate design and hydraulic damping structure reduce noise to ≤ 80 dB(A) at rated speed, improving operator comfort.
• Wide Operating Range: Adapts to extreme temperatures (-20°C to +90°C) and variable viscosity oils, suitable for both mobile and industrial applications.
• Easy Integration: Standardized mounting dimensions and port sizes ensure compatibility with existing hydraulic systems, facilitating retrofitting and replacement.

3. Which applications is this pump designed for?

• Construction machinery (large excavators, wheel loaders, hydraulic cranes, concrete pumps)
• Mining equipment (underground haulers, rock drills, crushing machines)
• Industrial machinery (hydraulic presses, plastic injection molding machines, steel mills, paper machines)
• Agricultural machinery (large tractors, combine harvesters, irrigation systems)
• Marine systems (ship deck machinery, winches, steering gear)
• Offshore equipment (oil drilling rigs, platform hydraulic systems)

4. What are the installation and maintenance requirements?

• Installation:
  • Ensure concentricity between pump and motor ≤ 0.1 mm; use flexible coupling to absorb vibration.
  • Mount on a rigid base with shock-absorbing pads; reserve ≥ 15 cm clearance for heat dissipation and maintenance.
  • Prime the pump before initial startup to avoid dry running; ensure inlet oil pressure ≥ 0.8 bar.
