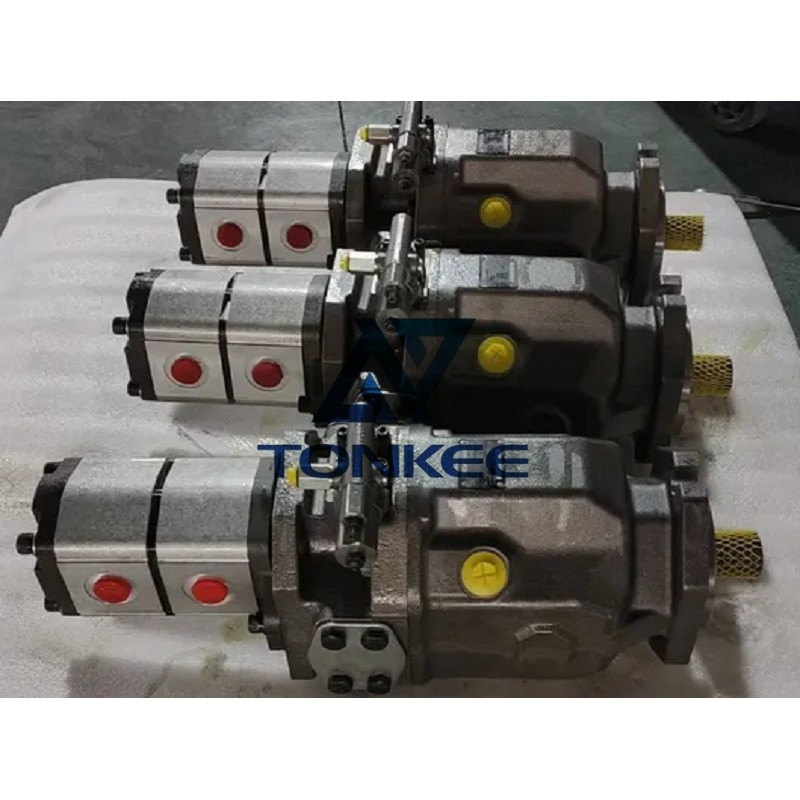

What are the core technical parameters of the two pumps?
| Parameter | Specification (Applicable to Both Models) |
|---|---|
| Nominal Displacement | 100 cm³/rev |
| Maximum Working Pressure | 350 bar (5075 psi) |
| Rated Working Pressure | 315 bar (4568 psi) |
| Maximum Speed | 2800 rpm |
| Rated Speed | 1500 – 2500 rpm |
| Minimum Speed | 500 rpm |
| Oil Viscosity Range | 10 – 400 mm²/s (1 mm²/s = 1 cSt) |
| Recommended Oil Temperature | -20°C to +90°C (-4°F to 194°F) |
| Oil Filtration Requirement | ≥ 10 μm (complies with ISO 4406 Class 16/13) |
| Shaft Type | Tapered Keyed Shaft (ISO 286-2, Diameter: 38 mm / 1.496 in) |
| Mounting Standard | SAE J744 (3-bolt flange, SAE B) |
| Inlet/Outlet Port Size | Inlet: G1 1/2″ (BSPP thread), Outlet: G1 1/4″ (BSPP thread) |
| Dry Weight | Approximately 65 kg (143.3 lbs) |
| Volumetric Efficiency | ≥ 95% (under rated pressure and speed) |
| Mechanical Efficiency | ≥ 92% (under rated pressure and speed) |
What are the key performance advantages of these pumps?
- Precise Dual Control: Hydraulic pilot pressure-flow compensation (DFR1) enables stepless displacement adjustment (0-100%), matching flow output to system load and reducing energy consumption by 20-25% compared to fixed-displacement pumps.
- High-Pressure Durability: Reinforced alloy steel cylinder block, precision-ground valve plate, and chrome-plated piston assembly withstand 350 bar max pressure, ensuring stable operation for ≥ 10,000 operating hours in heavy-duty scenarios.
- Integrated Safety Protection: Built-in pressure relief valve (set to 350 bar) prevents system overpressure damage; anti-cavitation design enhances reliability in low-inlet-pressure conditions (e.g., long-distance oil supply).
- Low Noise & Vibration: Optimized swashplate profile and hydraulic damping structure reduce noise to ≤ 80 dB(A) at rated speed, meeting industrial noise standards and improving operator comfort.
- Wide Adaptability: Operates reliably in extreme temperatures (-20°C to +90°C) and variable oil viscosities, suitable for both indoor industrial equipment (e.g., injection molding machines) and outdoor mobile machinery (e.g., excavators).
- Easy Integration: Standardized mounting dimensions and port sizes ensure compatibility with existing hydraulic systems, supporting seamless retrofitting and replacement.
