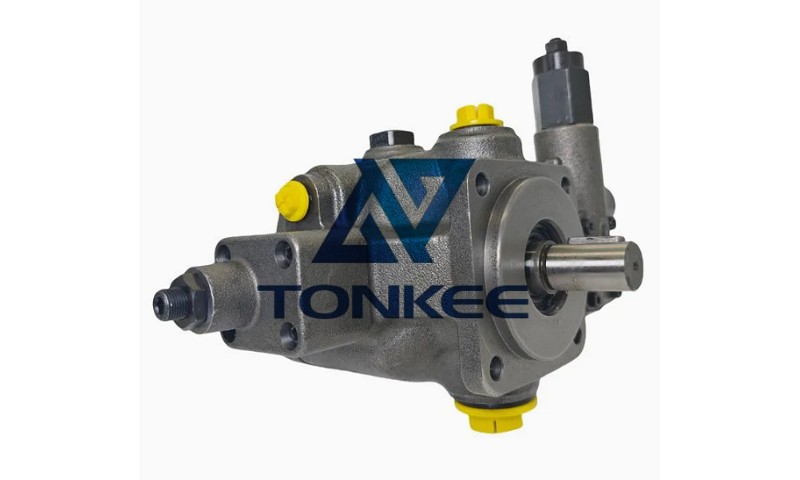

The PV7 series is a high-precision variable displacement vane pump designed for industrial hydraulic systems. It is widely used in:
- Machine tools (CNC lathes, milling machines, grinding machines)
- Plastic injection molding machines
- Hydraulic presses and forging equipment
- Automated production lines
- Construction machinery auxiliary systems
- Agricultural machinery (harvesters, tractors)
The models PV7-1X/06-10RA01MA0-10 and PV7-1A/10-20RE01MC0-10 are optimized for medium-pressure, medium-flow hydraulic circuits requiring stable pressure control and energy efficiency.
Breakdown of key model components for clarity:
- PV7: Series identifier (Variable Vane Pump)
- 1X/1A: Pump size and configuration (1X = compact size; 1A = standard size)
- 06-10/10-20: Displacement range (06-10 = 6-10 cm³/rev; 10-20 = 10-20 cm³/rev)
- RA/RE: Control type (RA = Pressure Relief Control; RE = Pressure Compensated Control)
- 01: Mounting code (standard flange configuration)
- MA/MC: Shaft type (MA = Metric splined shaft; MC = Keyed shaft)
- 0-10: Factory calibration code (pressure/flow setting identifier)
